Core Technical Parameters:
• Voltage Rating: 10kV
• Power Range: 220 kW – 4,000 kW
• Number of Poles: 4 – 12
• Protection Class: IP23 (YXL), IP44, IP54, IP55
• Insulation / Temperature Rise Class: Class F / Class B
• Altitude: ≤1000m
• Frequency: 50 Hz
• Ambient Temperature: ≤40°C
• Frame Size: 355 – 630
• Cooling Method: IC01 (YXL), IC81W (YXKSL), IC611 (YXKKL)
• Installation Method: IMV1 (vertical, flange-mounted)
• Structure Type: Box-type structure

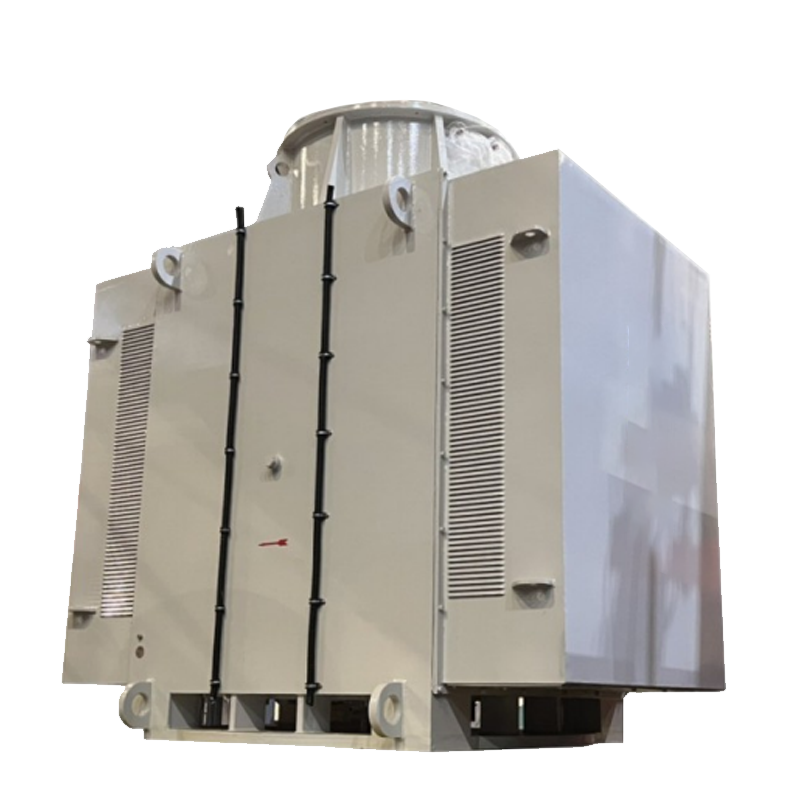

Note:YXL, YXKSL, YXKKL Series Medium-sized Three-Phase Vertical Asynchronous Motors adopt high-efficiency optimized design and IMV1 vertical mounting structure capable of bearing large axial loads. Three cooling configurations are available: self-ventilated type, air-to-water cooled type and air-to-air cooled type for flexible selection. Featuring low loss, high efficiency & energy saving, low vibration, low noise, stable and reliable operation as well as easy installation and maintenance, the motors are mainly used to drive various vertical water pumps. They serve as supporting prime movers for circulating water pumps and condensate pumps in large thermal power plants, and are also widely applied to vertical fluid equipment in water conservancy pumping stations and municipal water supply projects.
