Core Technical Parameters:
• Voltage Rating: 10 kV
• Power Range: 710–10,000 kW
• Pole Configuration: 12–20 poles
• Insulation / Temperature Rise Class: Class F / Class B
• Operating Frequency: 50 Hz
• Operating Environment: Altitude ≤ 1,000 m; Ambient temperature ≤ 40 °C
• Frame Number: 710–1120
• Cooling Method: YL Series: IP23/IC01; YKSL Series: IC81W; YKKL Series: IC611
• Mounting Type: IMV1 vertical flange mounting
• Structural Type: Box-type structure
Product Features:
Advanced design, rational structure, and premium materials, offering high efficiency and energy savings, low noise and vibration, reliable operation, and convenient maintenance.
Application Scenarios:

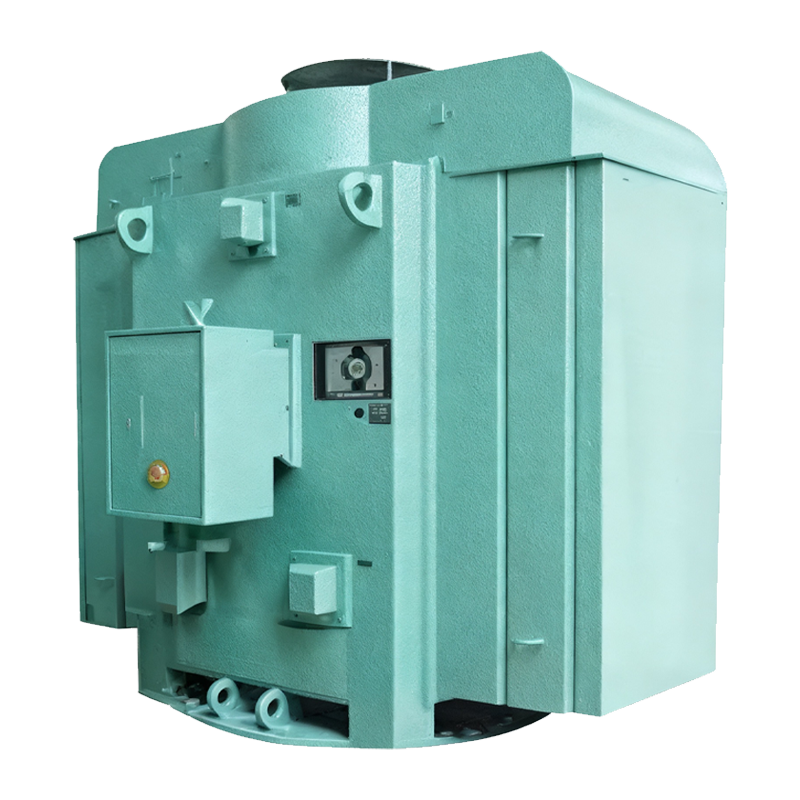

YL, YKSL, YKKL Series Large Vertical Three-Phase Asynchronous Motors adopt IMV1 vertical mounting structure and can withstand large axial loads. They are mainly used to drive various vertically installed water pumps, serving as prime movers for circulating water pumps and condensate pumps in large thermal power plants. They are also applicable to vertical fluid equipment in drainage pumping stations and municipal water supply projects. Three cooling configurations are available: YL self-ventilated type, YKSL air-to-water cooled type and YKKL air-to-air cooled type for flexible selection according to plant room conditions. The motors feature reliable operation, low vibration, low noise and convenient maintenance.
