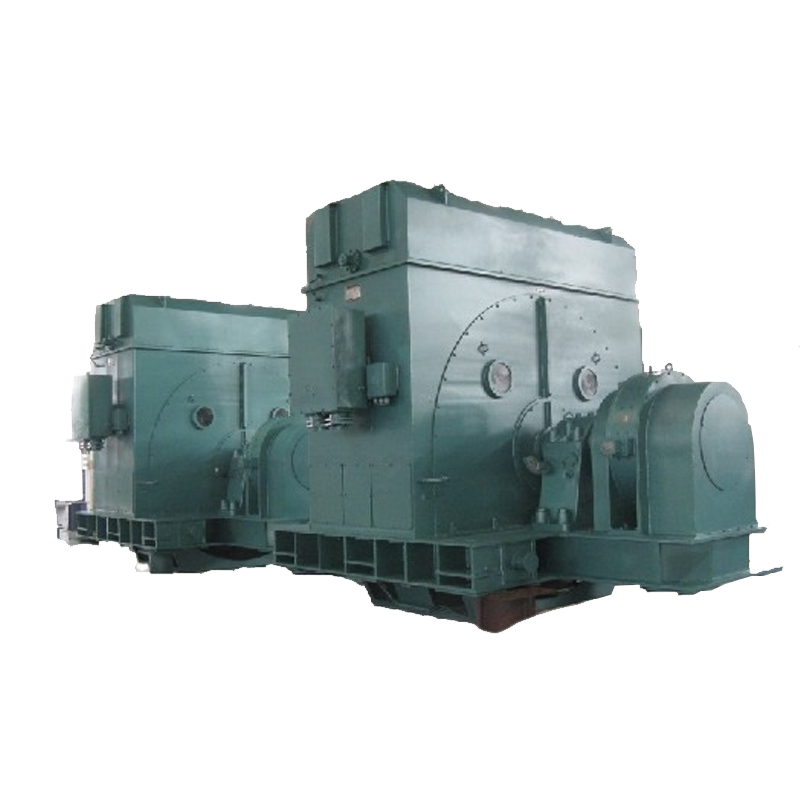

Core Technical Parameters:
- Voltage Rating: 3 kV – 13.8 kV
- Power Range: 200–4,500 kW
- Pole Configuration: 12–24 poles
- Protection Class: IP54 / IP55
- Insulation / Temperature Rise Class: F/B, H/B (optional)
- Operating Frequency: 50 Hz
- Duty Type: Continuous duty (S1)
- Operating Environment: Altitude ≤ 1,000 m; Ambient temperature –15 °C to +40 °C
Product Features:
- Leading power factor capability, effectively improving power grid power quality.
- Significant performance advantages at low-speed operating conditions; constant speed independent of load fluctuations.
- Strong overload capacity, high operating efficiency, and excellent stability.
- Flexible structural configurations: horizontal salient-pole / non-salient-pole; supports IM7311 (with shaft and pedestal bearing) and IM5710 (shaftless pedestal bearing) mounting types.
- Default: static thyristor excitation; other excitation methods available upon request.
- Supports high-altitude corona protection and wet tropical type customization.
Application Scenarios:
Fans, compressors, ball mills, water pumps, rolling mills, and other large constant-speed mechanical equipment in Zone 2 explosive atmospheres.
