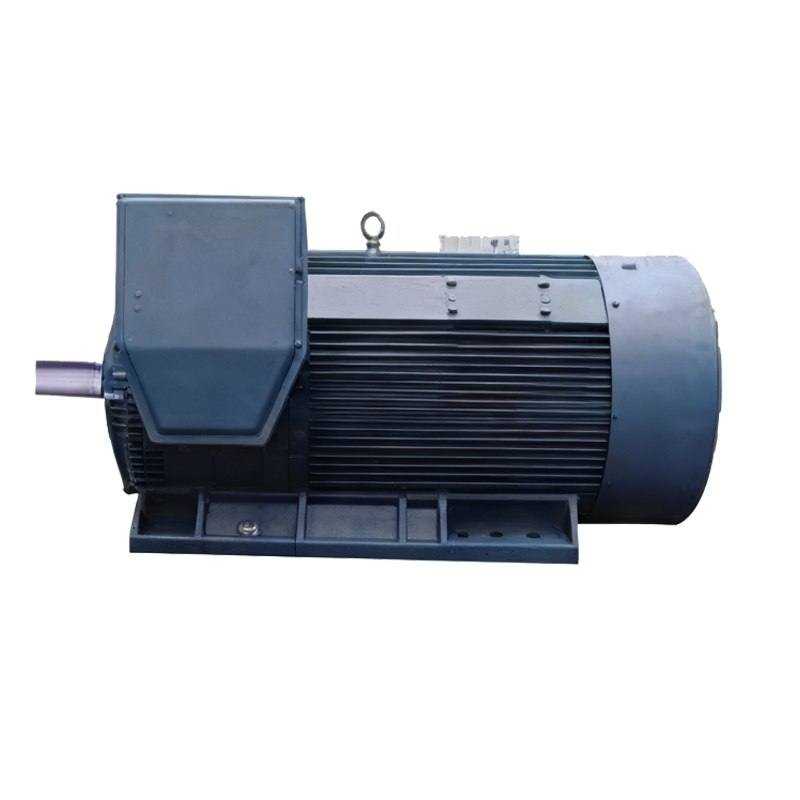

Core Technical Parameters:
- Voltage Rating: 6 kV, 10 kV
- Power Range: 6 kV series: 185–2,240 kW; 10 kV series: 185–2,000 kW
- Pole Configuration: 2P, 4P, 6P, 8P, 10P
- Protection Class: IP54, IP55
- Insulation / Temperature Rise Class: Class F / Class B
- Operating Frequency: 50 Hz
- Cooling Method: IC411
- Mounting Type: IMB3
- Structural Type: Rib-cooled structure
- Operating Environment: Altitude ≤ 1,000 m; Ambient temperature ≤ 40 °C
- Frame Number: 355–560
Product Features:
- Full rib-cooled structure with excellent sealing performance, compact and high-efficiency overall design, achieving energy savings and consumption reduction.
- Stator adopts Class F low-resin mica tape with VPI vacuum impregnation process, delivering outstanding insulation performance, moisture resistance, and impact resistance.
- Rotor made of cast aluminum material; copper bar rotors are available as an option, eliminating the risk of bar breakage failures.
- Bearings available in rolling or sliding types; rolling bearings equipped with non-stop oiling and drainage devices for convenient maintenance.
- Low winding operating noise; simple installation, inspection, and maintenance of the complete unit.
Application Scenarios:
Widely compatible with compressors, ventilation fans, and other general-purpose machinery. Commonly used in ports, mines, and other industrial and mining enterprises. Capable of driving fans, coal mills, and other high-inertia equipment (subject to execution of a special technical agreement).
